Oscillating sieve plate screen in the carton paper pulp making system

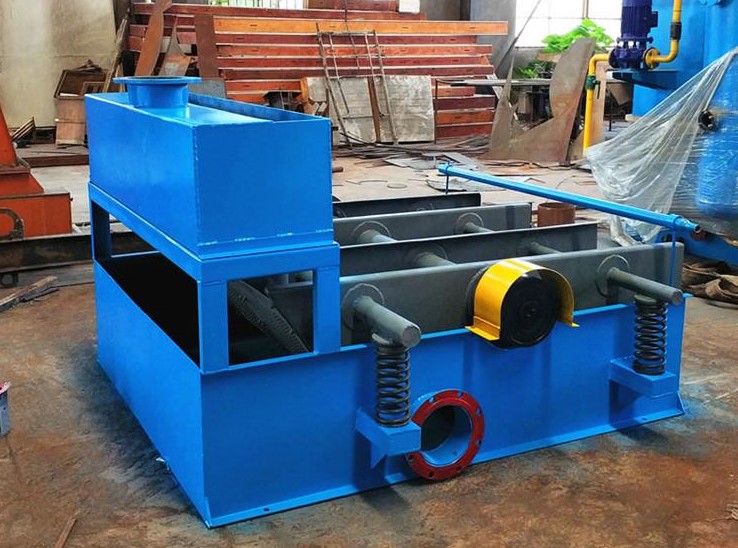

Self-cleaning vibrating frame flat screen is a device used by pulp and paper mills to screen pulp and improve pulp quality. This equipment is suitable for the screening of various pulps such as wood pulp, straw pulp, waste paper pulp, etc., and can continuously screen various impurities in pulp suspension, such as plastic, rubber, vinyl chloride, hot melt and coarse residue , Residual knots, etc.

This machine has a simple structure, strong slag discharge capacity and low noise. The flat bottom screen is easy to manufacture and convenient to operate and maintain.

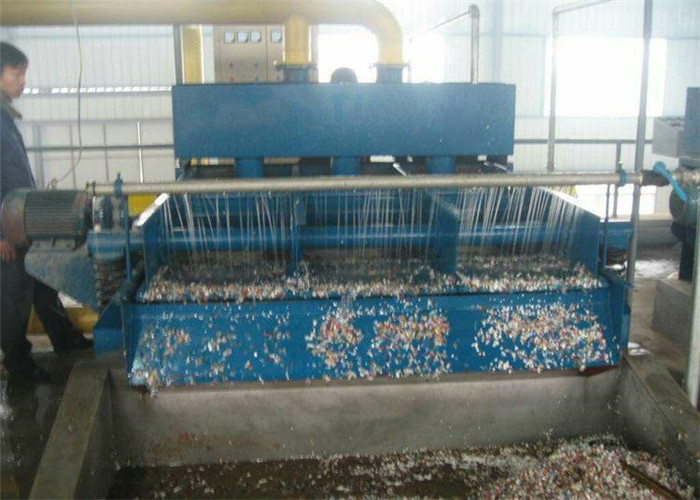

The working principle of the self-washing vibrating frame flat screen is that the motor drives the main shaft to rotate at a high speed. At this time, the biasing wheels at both ends of the main shaft generate a large centrifugal force, which makes the screen frame suspended on the spring vibrate in an elliptical trajectory. The surface of the sieve plate is drilled with sieve holes of Φ2 to Φ12mm or sieve slots with a width of 0.5 to 0.75mm to meet the screening requirements of different slurry. An air-sealing chamber with a certain height is connected to the bottom of the screen frame. After the motor starts to operate, the slurry level of the slurry tank is adjusted above the bottom of the air-sealing chamber, so that the sieve plate is above the slurry liquid level in the slurry tank. When vibrating, the air sealed in the airtight chamber will generate pressure pulsation. When the sieve plate moves upward, the slurry is dipped into the slurry tank through the sieve holes, so that the sieve plate is continuously self-cleaned without blocking the sieve plate, which not only keeps the sieve plate clean and smooth, but also improves the screening quality and production capacity.

Yiwu Yuxing Import and Export Firm is a company integrating import and export of papermaking equipment and technical consulting services.

The company has more than 100 cooperative suppliers of various papermaking accessories, from pulping equipment to paper machine parts, each product supplier has been strictly screened by us, has a good reputation in China and has long-term reliable cooperation. Long-term and stable supply of various types of papermaking accessories with high quality and reasonable price.

We have a professional and experienced technical team who can choose a more reasonable equipment selection for customers. At the same time, the quality control department provides full tracking and supervision from the start of production to the final delivery to ensure that the equipment is delivered on time, according to quality and quantity in the hands of customers.

Since its establishment, the company has been adhering to the principle of quality first and service first, and has been favored and praised by many customers. Our products and services are available all over the world. Save time for customers and create more value.
