    Low Pressure Pulp Cleaner Stainless Steel Dump Rejector 1 Year Warranty

    Ask Lasest Price
    Brand Name : YUXING
    Model Number : TYPE280
    Certification : CHINA LIGHT INDUSTRY STANDARD
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 30 WORK DAYS
    • Product Details
    • Company Profile

    Low Pressure Pulp Cleaner Stainless Steel Dump Rejector 1 Year Warranty

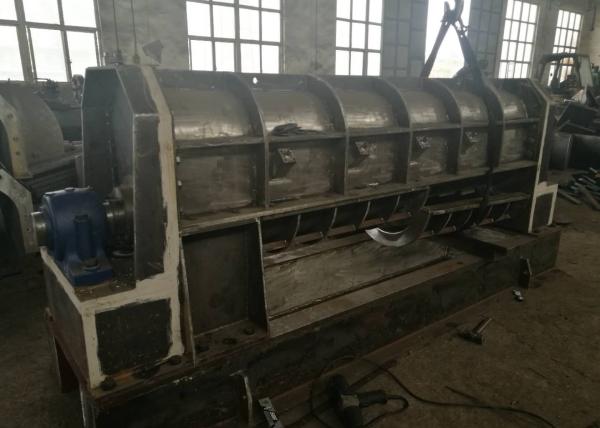

    Type280 stainless steel dump rejector for the paper pulp cleaning


    I. Introduction

    Features: This machine is mainly used for the treatment of tailings in the screening section of the waste paper system. The feed concentration is about 1-3%, the slag discharge concentration can reach 20%, the treatment efficiency is high, the fiber retention rate is high, and the recovery rate can reach more than 80%; only need to operate under normal pressure, and it is a closed operation to avoid the splashing of dirt, save the cost of slag discharge treatment, and fast long-term investment recovery.


    II. Main specification

    ModelZSZ1ZSZ2ZSZ3
    SizeΦ280Φ380Φ500
    Pulp consistency (%)1-3.5
    Slag consistency(%)15-20
    Capacity (t/d)10-2020-3540-70
    Power (kw)375555

    III. Structure introduction

    1. The cylinder is welded by steel plate. The part in contact with the slurry is stainless steel. There are eight water spray pipes on both sides of the cylinder.

    2. The rotor is a rotating rod with 32 blades fixed on it.

    3. The sieve plate is a combination of two semi-circular sieve cylinders with a diameter of Φ2.0-Φ4.5mm. It can be used as required.
