    High Frequency Vibration Screen Machine With Strong Slag Discharge Capacity

    Ask Lasest Price
    Brand Name : YUXING
    Model Number : 1M2/2M2/3M2
    Certification : CHINA LIGHT INDUSTRY STANDARD
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

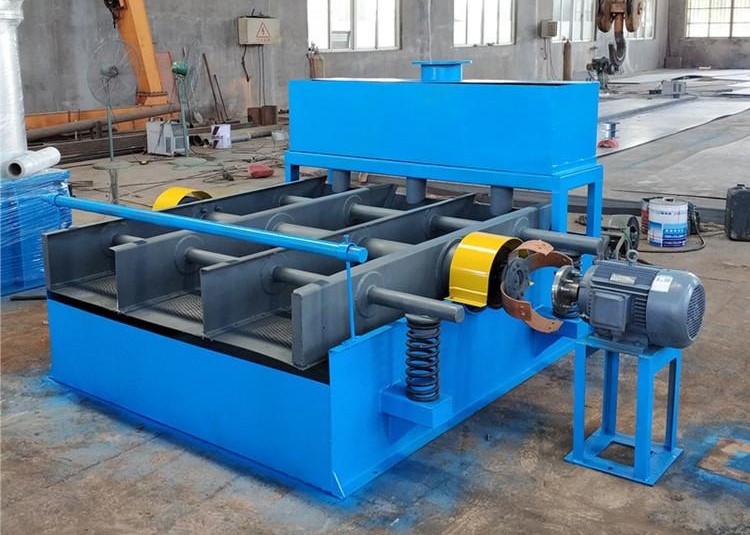

    High Frequency Vibration Screen Machine With Strong Slag Discharge Capacity

    1. High frequency vibrating screen for the waste paper pulp cleaning


    Self-cleaning vibrating frame flat screen is a device used by pulp and paper mills to screen pulp and improve pulp quality. This equipment is suitable for the screening of various pulps such as wood pulp, straw pulp, waste paper pulp, etc., and can continuously screen various impurities in pulp suspension, such as plastic, rubber, vinyl chloride, hot melt and coarse residue , Residual knots, etc.

    This machine has a simple structure, strong slag discharge capacity and low noise. The flat bottom screen is easy to manufacture and convenient to operate and maintain.


    This product consists of screen body, vibration exciter, shock absorber, slurry tank, slurry tank, water spray device and elastic coupling.

    Specification of the High frequency vibrating screen for the waste paper pulp cleaning


    ModelPVS-1PVS--2PVS-3PVS-4
    Capacity (T/D)8-1620-4040-8060-120
    Screen area (m2)0.6123
    Screen plate dimension mm500×1300580×21001080×21001580×2100
    Water spray (L/min)15~3020~4030~6050~100
    Vibration frequency (times/min)710710710710
    Amplitude (full amplitude) mm10~1210~1310~1510~15
    pulp inlet mm70×240150×300150×300150×300
    Motor modelY132S-8Y132M-8Y160M-8Y160S-8
    Power (KW)2.2345.5
    Rotary speed r/min710710710710
    Weight(without motor)kg807100012001500
    Overall size (L X W X H)mm2169×2030×11602780×2100×13002780×2560×14002780×3100×1400
